Ductile

Ductile Bike Safe Grate & Frame - Class B FAG44B
Product Specifications
  • FRAME DEPTH (E): 45
  • FRAME LENGTH (C): 585
  • FRAME WIDTH (D): 540
  • GRATE DEPTH (Z): 38
  • GRATE LENGTH (X): 505
  • GRATE WIDTH (Y): 500
  • OPENING LENGTH (A): 450
  • OPENING WIDTH (B): 450
-
Ductile Bike Safe Grate & Frame - Class B FAG66B
Product Specifications
  • FRAME DEPTH (E): 45
  • FRAME LENGTH (C): 740
  • FRAME WIDTH (D): 690
  • GRATE DEPTH (Z): 38
  • GRATE LENGTH (X): 660
  • GRATE WIDTH (Y): 650
  • OPENING LENGTH (A): 600
  • OPENING WIDTH (B): 600
-
Ductile Bike Safe Grate & Frame - Class B FAG96B
Product Specifications
  • FRAME DEPTH (E): 45
  • FRAME LENGTH (C): 1040
  • FRAME WIDTH (D): 690
  • GRATE DEPTH (Z): 38
  • GRATE LENGTH (X): 960
  • GRATE WIDTH (Y): 650
  • OPENING LENGTH (A): 900
  • OPENING WIDTH (B): 600
-
Ductile Bike Safe Grate & Frame - Class B FAG99B
Product Specifications
  • FRAME DEPTH (E): 45
  • FRAME LENGTH (C): 1040
  • FRAME WIDTH (D): 990
  • GRATE DEPTH (Z): 38
  • GRATE LENGTH (X): 960
  • GRATE WIDTH (Y): 950
  • OPENING LENGTH (A): 900
  • OPENING WIDTH (B): 900
-
Ductile Bike Safe Grate & Frame - Class D DILCOM-D
Product Specifications
  • FRAME DEPTH (E): 75
  • FRAME LENGTH (C): 1045
  • FRAME WIDTH (D): 450
  • GRATE DEPTH (Z): 65
  • GRATE LENGTH (X): 990
  • GRATE WIDTH (Y): 405
  • OPENING LENGTH (A): 900
  • OPENING WIDTH (B): 700
-

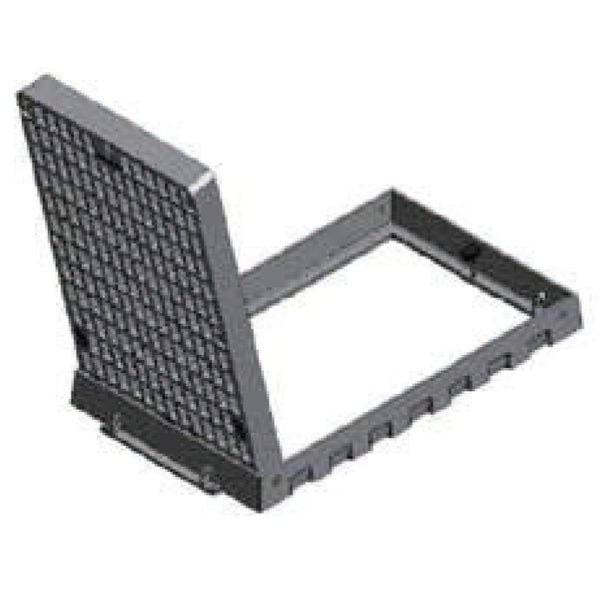

Ductile Bike Safe Grate & Frame - Class D DISAL
Product Specifications
  • FRAME DEPTH (E): 105
  • FRAME LENGTH (C): 1040
  • FRAME WIDTH (D): 595
  • GRATE DEPTH (Z): 100
  • GRATE LENGTH (X): 915
  • GRATE WIDTH (Y): 520
  • OPENING LENGTH (A): 840
  • OPENING WIDTH (B): 525
-
Ductile Bike Safe Grate & Frame - Class D DISAS
Product Specifications
  • FRAME DEPTH (E): 105
  • FRAME LENGTH (C): 1040
  • FRAME WIDTH (D): 440
  • GRATE DEPTH (Z): 100
  • GRATE LENGTH (X): 915
  • GRATE WIDTH (Y): 365
  • OPENING LENGTH (A): 840
  • OPENING WIDTH (B): 375
-
Ductile Bike Safe Grate & Frame - Class D DS18
Product Specifications
  • FRAME DEPTH (E): 90
  • FRAME LENGTH (C): 1010
  • FRAME WIDTH (D): 515
  • GRATE DEPTH (Z): 75
  • GRATE LENGTH (X): 915
  • GRATE WIDTH (Y): 465
  • OPENING LENGTH (A): 860
  • OPENING WIDTH (B): 405
-
Ductile Bike Safe Grate & Frame - Class D DS22
Product Specifications
  • FRAME DEPTH (E): 95
  • FRAME LENGTH (C): 1030
  • FRAME WIDTH (D): 575
  • GRATE DEPTH (Z): 75
  • GRATE LENGTH (X): 930
  • GRATE WIDTH (Y): 535
  • OPENING LENGTH (A): 875
  • OPENING WIDTH (B): 475
-
Ductile Bike Safe Grate & Frame - Class D FAG44D
Product Specifications
  • FRAME DEPTH (E): 100
  • FRAME LENGTH (C): 630
  • FRAME WIDTH (D): 610
  • GRATE DEPTH (Z): 72
  • GRATE LENGTH (X): 545
  • GRATE WIDTH (Y): 530
  • OPENING LENGTH (A): 450
  • OPENING WIDTH (B): 450
-
Ductile Bike Safe Grate & Frame - Class D FAG66D
Product Specifications
  • FRAME DEPTH (E): 100
  • FRAME LENGTH (C): 780
  • FRAME WIDTH (D): 760
  • GRATE DEPTH (Z): 72
  • GRATE LENGTH (X): 690
  • GRATE WIDTH (Y): 680
  • OPENING LENGTH (A): 600
  • OPENING WIDTH (B): 600
-
Ductile Bike Safe Grate & Frame - Class D FAG96D
Product Specifications
  • FRAME DEPTH (E): 100
  • FRAME LENGTH (C): 1080
  • FRAME WIDTH (D): 760
  • GRATE DEPTH (Z): 72
  • GRATE LENGTH (X): 990
  • GRATE WIDTH (Y): 680
  • OPENING LENGTH (A): 900
  • OPENING WIDTH (B): 600
-
Ductile Bike Safe Grate & Frame - Class D FAG99D
Product Specifications
  • FRAME DEPTH (E): 100
  • FRAME LENGTH (C): 1080
  • FRAME WIDTH (D): 1060
  • GRATE DEPTH (Z): 72
  • GRATE LENGTH (X): 990
  • GRATE WIDTH (Y): 985
  • OPENING LENGTH (A): 900
  • OPENING WIDTH (B): 900
-
Ductile Bike Safe Grate & Frame - Class G FAG44G
Product Specifications
  • FRAME DEPTH (E): 150
  • FRAME LENGTH (C): 630
  • FRAME WIDTH (D): 630
  • GRATE DEPTH (Z): 90
  • GRATE LENGTH (X): 540
  • GRATE WIDTH (Y): 540
  • OPENING LENGTH (A): 460
  • OPENING WIDTH (B): 460
-
Ductile Bike Safe Grate & Frame - Class G FAG66G
Product Specifications
  • FRAME DEPTH (E): 150
  • FRAME LENGTH (C): 790
  • FRAME WIDTH (D): 780
  • GRATE DEPTH (Z): 90
  • GRATE LENGTH (X): 700
  • GRATE WIDTH (Y): 690
  • OPENING LENGTH (A): 610
  • OPENING WIDTH (B): 610
-
Ductile Bike Safe Grate & Frame - Class G FAG96G
Product Specifications
  • FRAME DEPTH (E): 150
  • FRAME LENGTH (C): 1085
  • FRAME WIDTH (D): 780
  • GRATE DEPTH (Z): 90
  • GRATE LENGTH (X): 995
  • GRATE WIDTH (Y): 690
  • OPENING LENGTH (A): 910
  • OPENING WIDTH (B): 610
-
Ductile Bike Safe Grate & Frame - Class G FAG99G
Product Specifications
  • FRAME DEPTH (E): 150
  • FRAME LENGTH (C): 1085
  • FRAME WIDTH (D): 1085
  • GRATE DEPTH (Z): 90
  • GRATE LENGTH (X): 995
  • GRATE WIDTH (Y): 995
  • OPENING LENGTH (A): 910
  • OPENING WIDTH (B): 910
-
Ductile Bike Safe Trench Grate & Channel - Class B DIGC15B
Product Specifications
  • FRAME (C): 1235
  • FRAME (D): 210
  • FRAME (E): 140
  • GRATE (X): 1200
  • GRATE (Y): 200
  • GRATE (Z): 20
  • OPENING (A): 1200
  • OPENING (B): 150
-
Ductile Bike Safe Trench Grate & Frame - Class D UN15D
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 285
  • FRAME (E): 40
  • GRATE (X): 610
  • GRATE (Y): 200
  • GRATE (Z): 25
  • OPENING (A): 610
  • OPENING (B): 150
-
Ductile Bike Safe Trench Grate & Frame - Class D UNI23D
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 365
  • FRAME (E): 40
  • GRATE (X): 610
  • GRATE (Y): 280
  • GRATE (Z): 25
  • OPENING (A): 610
  • OPENING (B): 230
-
Ductile Bike Safe Trench Grate & Frame - Class D UNI30D
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 435
  • FRAME (E): 40
  • GRATE (X): 610
  • GRATE (Y): 350
  • GRATE (Z): 25
  • OPENING (A): 610
  • OPENING (B): 300
-
Ductile Bike Safe Trench Grate & Frame - Class D UNI45D
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 585
  • FRAME (E): 40
  • GRATE (X): 610
  • GRATE (Y): 500
  • GRATE (Z): 25
  • OPENING (A): 610
  • OPENING (B): 450
-
Ductile Bike Safe Trench Grate & Frame - Class G UN15G
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 285
  • FRAME (E): 100
  • GRATE (X): 610
  • GRATE (Y): 200
  • GRATE (Z): 75
  • OPENING (A): 610
  • OPENING (B): 150
-
Ductile Bike Safe Trench Grate & Frame - Class G UNI23G
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 365
  • FRAME (E): 100
  • GRATE (X): 610
  • GRATE (Y): 280
  • GRATE (Z): 75
  • OPENING (A): 610
  • OPENING (B): 230
-
Ductile Bike Safe Trench Grate & Frame - Class G UNI30G
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 435
  • FRAME (E): 100
  • GRATE (X): 610
  • GRATE (Y): 350
  • GRATE (Z): 75
  • OPENING (A): 610
  • OPENING (B): 300
-
Ductile Bike Safe Trench Grate & Frame - Class G UNI45G
Product Specifications
  • FRAME (C): 610
  • FRAME (D): 585
  • FRAME (E): 100
  • GRATE (X): 610
  • GRATE (Y): 500
  • GRATE (Z): 75
  • OPENING (A): 610
  • OPENING (B): 450
-
Ductile Grate & Box FW220
Product Specifications
  • COVER (L): 220
  • COVER (W): 220
  • COVER THICKNESS: 15
  • FRAME (L): 230
  • FRAME (W): 230
  • FRAME DEPTH: 80
  • OPENING (L): 175
  • OPENING (W): 175
-
Ductile Grate & Box FW250
Product Specifications
  • COVER (L): 250
  • COVER (W): 250
  • COVER THICKNESS: 15
  • FRAME (L): 260
  • FRAME (W): 260
  • FRAME DEPTH: 160
  • OPENING (L): 200
  • OPENING (W): 200
-
Ductile Inspection Box CCS-L
Product Specifications
  • COVER (L): 180
  • COVER (W): 160
  • COVER THICKNESS: 40
  • FRAME (L): 280
  • FRAME (W): 280
  • FRAME DEPTH: 150
  • OPENING (L): 160
  • OPENING (W): 140
-
Ductile Inspection Box CCS-S
Product Specifications
  • COVER (L): 180
  • COVER (W): 160
  • COVER THICKNESS: 40
  • FRAME (L): 280
  • FRAME (W): 280
  • FRAME DEPTH: 70
  • OPENING (L): 160
  • OPENING (W): 140
-
Ductile Inspection Box GBCI
Product Specifications
  • COVER (L): 105
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 13
  • FRAME (L): 135
  • FRAME (W): 120
  • FRAME DEPTH: 90
  • OPENING (L): 100
  • OPENING (W): CIRCULAR
-
Ductile Inspection Box GTS4
Product Specifications
  • COVER (L): 110
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 5
  • FRAME (L): 122
  • FRAME (W): CIRCULAR
  • FRAME DEPTH: 50
  • OPENING (L): 100
  • OPENING (W): CIRCULAR
-
Ductile Inspection Box GTS6
Product Specifications
  • COVER (L): 160
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 8
  • FRAME (L): 175
  • FRAME (W): CIRCULAR
  • FRAME DEPTH: 60
  • OPENING (L): 150
  • OPENING (W): CIRCULAR
-
Ductile Inspection Box HD.AP.SW
Product Specifications
  • COVER (L): 315
  • COVER (W): 210
  • COVER THICKNESS: 40
  • FRAME (L): 490
  • FRAME (W): 365
  • FRAME DEPTH: 205
  • OPENING (L): 295
  • OPENING (W): 190
-
Ductile Inspection Box HD.CP.SW
Product Specifications
  • COVER (L): 317
  • COVER (W): 267
  • COVER THICKNESS: 75
  • FRAME (L): 425
  • FRAME (W): 375
  • FRAME DEPTH: 205
  • OPENING (L): 265
  • OPENING (W): 215
-
Ductile Inspection Box HD.NS..SW
Product Specifications
  • COVER (L): 225
  • COVER (W): 190
  • COVER THICKNESS: 40
  • FRAME (L): 380
  • FRAME (W): 240
  • FRAME DEPTH: 145
  • OPENING (L): 203
  • OPENING (W): 165
-
Ductile Inspection Box HDCI
Product Specifications
  • COVER (L): 256
  • COVER (W): 185
  • COVER THICKNESS: 40
  • FRAME (L): 375
  • FRAME (W): 305
  • FRAME DEPTH: 120
  • OPENING (L): 200
  • OPENING (W): 170
-
Ductile Inspection Box INSP
Product Specifications
  • COVER (L): 160
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 8
  • FRAME (L): 175
  • FRAME (W): CIRCULAR
  • FRAME DEPTH: 50
  • OPENING (L): 150
  • OPENING (W): CIRCULAR
-
Ductile Inspection Box NT-HYD
Product Specifications
  • COVER (L): 435
  • COVER (W): 250
  • COVER THICKNESS: 40
  • FRAME (L): 575
  • FRAME (W): 390
  • FRAME DEPTH: 100
  • OPENING (L): 430
  • OPENING (W): 230
-
Ductile Inspection Box NT-VAL
Product Specifications
  • COVER (L): 290
  • COVER (W): 190
  • COVER THICKNESS: 30
  • FRAME (L): 420
  • FRAME (W): 325
  • FRAME DEPTH: 100
  • OPENING (L): 290
  • OPENING (W): 180
-
Ductile Inspection Box NT150R
Product Specifications
  • COVER (L): 150
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 10
  • FRAME (L): 175
  • FRAME (W): CIRCULAR
  • FRAME DEPTH: 20
  • OPENING (L): 125
  • OPENING (W): CIRCULAR
-
Ductile Inspection Box NT200R
Product Specifications
  • COVER (L): 200
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 13
  • FRAME (L): 265
  • FRAME (W): CIRCULAR
  • FRAME DEPTH: 95
  • OPENING (L): 150
  • OPENING (W): CIRCULAR
-
Ductile Inspection Box NTLINSP
Product Specifications
  • COVER (L): 275
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 25
  • FRAME (L): 340
  • FRAME (W): CIRCULAR
  • FRAME DEPTH: 105
  • OPENING (L): 230
  • OPENING (W): CIRCULAR
-
Ductile Inspection Box NTSINSP
Product Specifications
  • COVER (L): 200
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 13
  • FRAME (L): 265
  • FRAME (W): CIRCULAR
  • FRAME DEPTH: 95
  • OPENING (L): 150
  • OPENING (W): CIRCULAR
-
Ductile Inspection Box PATH4
Product Specifications
  • COVER (L): 105
  • COVER (W): 120
  • COVER THICKNESS: 5
  • FRAME (L): 152
  • FRAME (W): 172
  • FRAME DEPTH: 65
  • OPENING (L): 105
  • OPENING (W): 120
-
Ductile Inspection Box RTASS
Product Specifications
  • COVER (L): 105
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 12
  • FRAME (L): 136
  • FRAME (W): 127
  • FRAME DEPTH: 75
  • OPENING (L): 100
  • OPENING (W): CIRCULAR
-
Ductile Inspection Box RTASS-HD
Product Specifications
  • COVER (L): 105
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 13
  • FRAME (L): 155
  • FRAME (W): 125
  • FRAME DEPTH: 75
  • OPENING (L): 100
  • OPENING (W): CIRCULAR
-
Ductile Inspection Box SV.AP.SW
Product Specifications
  • COVER (L): 315
  • COVER (W): 210
  • COVER THICKNESS: 40
  • FRAME (L): 490
  • FRAME (W): 365
  • FRAME DEPTH: 205
  • OPENING (L): 295
  • OPENING (W): 190
-

Search
