Accessories - Cast Iron Boxes

Concrete encased cast iron boxes GBCON
Product Specifications
  • CLEAR (X) OPENING: 300
  • CLEAR (Y) OPENING: 150
  • DISH (D) INVERT: GBCI
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): ROUND
  • OVERALL WIDTH (A): 100
-
Concrete encased cast iron boxes GTS4CON
Product Specifications
  • CLEAR (X) OPENING: 300
  • CLEAR (Y) OPENING: 150
  • DISH (D) INVERT: GTS4
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): ROUND
  • OVERALL WIDTH (A): 100
-
Concrete encased cast iron boxes GTS6CON
Product Specifications
  • CLEAR (X) OPENING: 300
  • CLEAR (Y) OPENING: 150
  • DISH (D) INVERT: GTS6
  • OVERALL DEPTH (C): 300
  • OVERALL LENGTH (B): ROUND
  • OVERALL WIDTH (A): 150
-

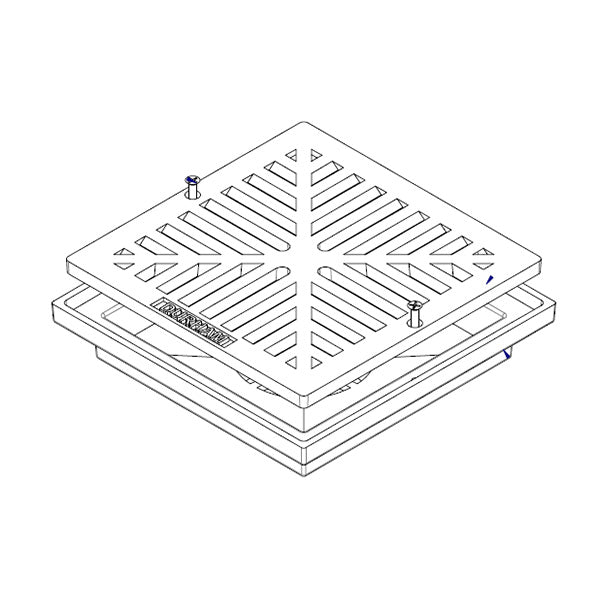

Ductile Grate & Box FW220
Product Specifications
  • COVER (L): 220
  • COVER (W): 220
  • COVER THICKNESS: 15
  • FRAME (L): 230
  • FRAME (W): 230
  • FRAME DEPTH: 80
  • OPENING (L): 175
  • OPENING (W): 175
-

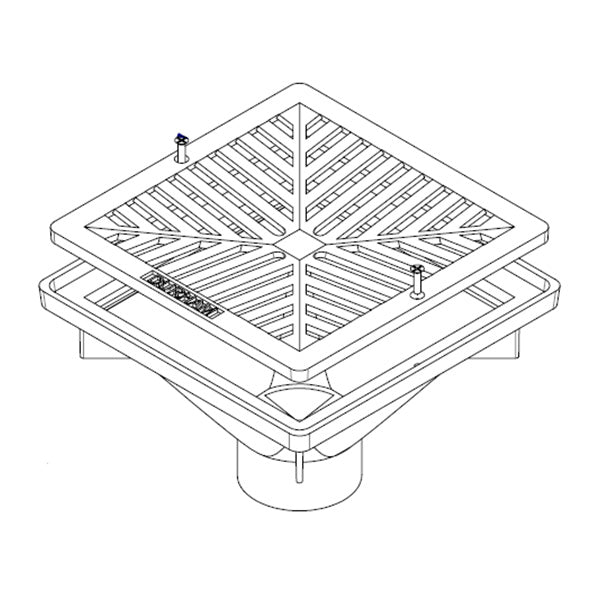

Ductile Grate & Box FW250
Product Specifications
  • COVER (L): 250
  • COVER (W): 250
  • COVER THICKNESS: 15
  • FRAME (L): 260
  • FRAME (W): 260
  • FRAME DEPTH: 160
  • OPENING (L): 200
  • OPENING (W): 200
-
Ductile Inspection Box CCS-L
Product Specifications
  • COVER (L): 180
  • COVER (W): 160
  • COVER THICKNESS: 40
  • FRAME (L): 280
  • FRAME (W): 280
  • FRAME DEPTH: 150
  • OPENING (L): 160
  • OPENING (W): 140
-

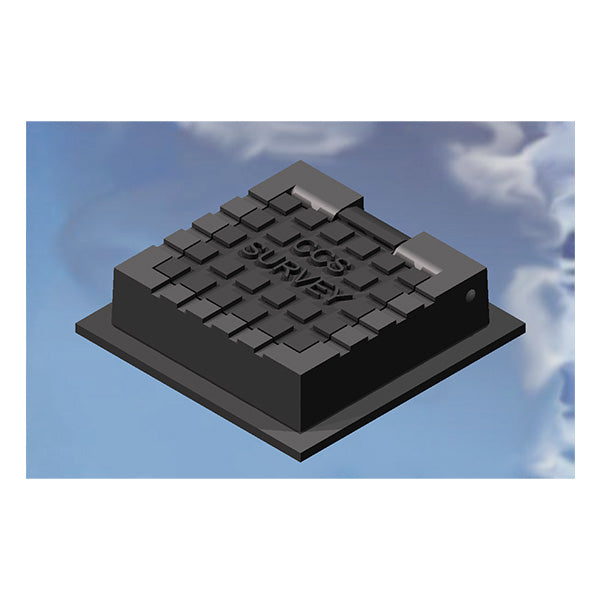

Ductile Inspection Box CCS-S
Product Specifications
  • COVER (L): 180
  • COVER (W): 160
  • COVER THICKNESS: 40
  • FRAME (L): 280
  • FRAME (W): 280
  • FRAME DEPTH: 70
  • OPENING (L): 160
  • OPENING (W): 140
-

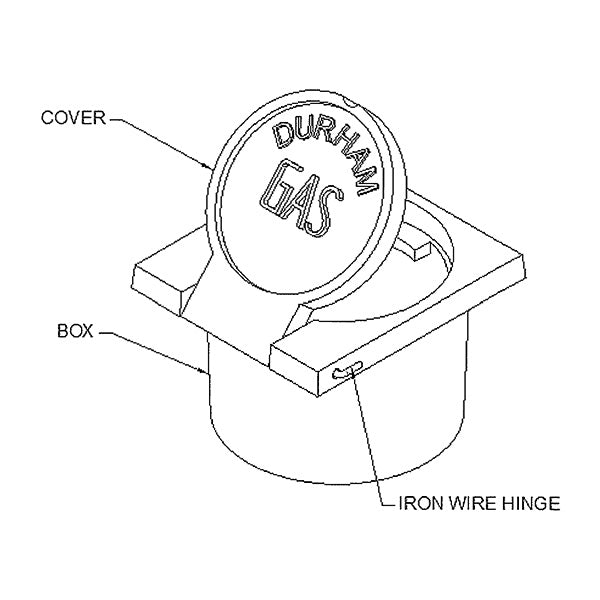

Ductile Inspection Box GBCI
Product Specifications
  • COVER (L): 105
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 13
  • FRAME (L): 135
  • FRAME (W): 120
  • FRAME DEPTH: 90
  • OPENING (L): 100
  • OPENING (W): CIRCULAR
-

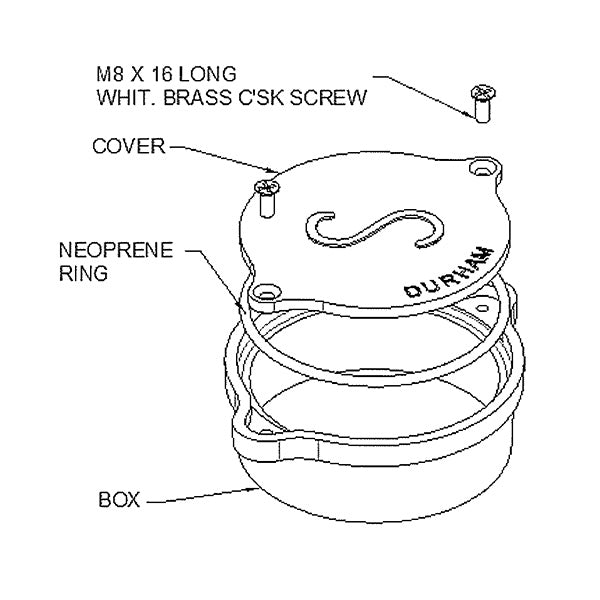

Ductile Inspection Box GTS4
Product Specifications
  • COVER (L): 110
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 5
  • FRAME (L): 122
  • FRAME (W): CIRCULAR
  • FRAME DEPTH: 50
  • OPENING (L): 100
  • OPENING (W): CIRCULAR
-
Ductile Inspection Box GTS6
Product Specifications
  • COVER (L): 160
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 8
  • FRAME (L): 175
  • FRAME (W): CIRCULAR
  • FRAME DEPTH: 60
  • OPENING (L): 150
  • OPENING (W): CIRCULAR
-

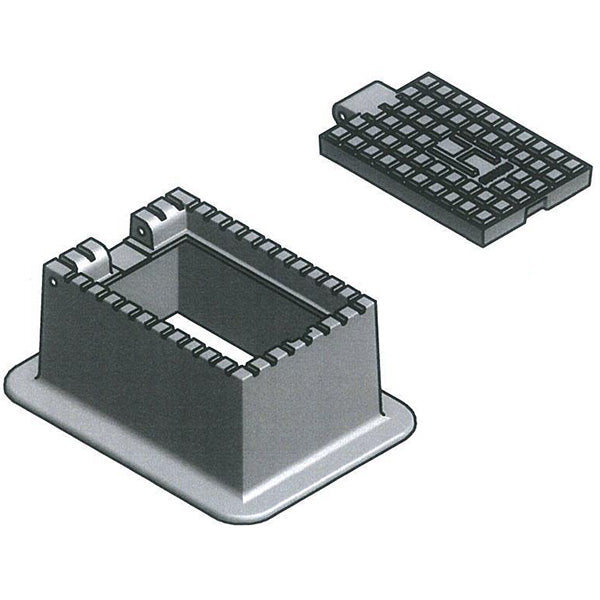

Ductile Inspection Box HD.AP.SW
Product Specifications
  • COVER (L): 315
  • COVER (W): 210
  • COVER THICKNESS: 40
  • FRAME (L): 490
  • FRAME (W): 365
  • FRAME DEPTH: 205
  • OPENING (L): 295
  • OPENING (W): 190
-

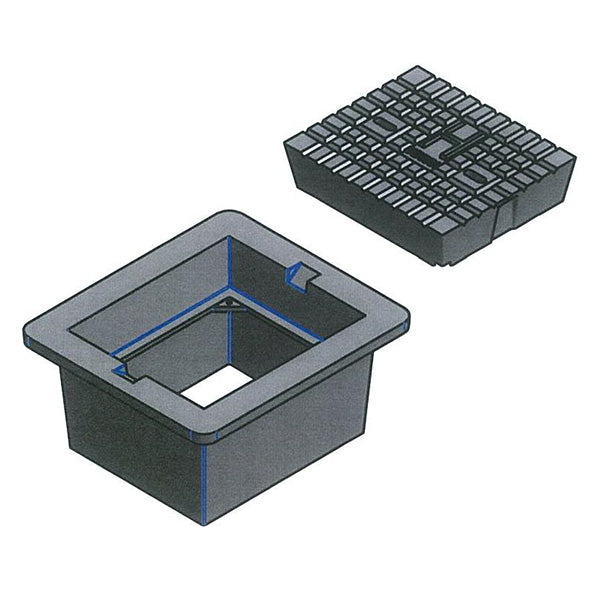

Ductile Inspection Box HD.CP.SW
Product Specifications
  • COVER (L): 317
  • COVER (W): 267
  • COVER THICKNESS: 75
  • FRAME (L): 425
  • FRAME (W): 375
  • FRAME DEPTH: 205
  • OPENING (L): 265
  • OPENING (W): 215
-

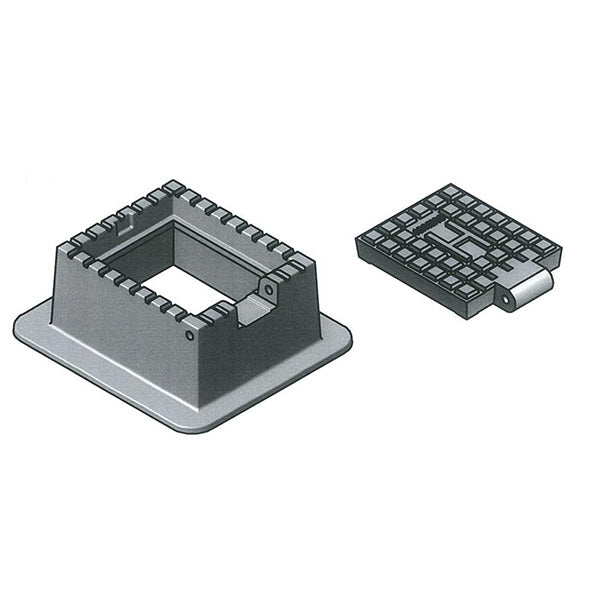

Ductile Inspection Box HD.NS..SW
Product Specifications
  • COVER (L): 225
  • COVER (W): 190
  • COVER THICKNESS: 40
  • FRAME (L): 380
  • FRAME (W): 240
  • FRAME DEPTH: 145
  • OPENING (L): 203
  • OPENING (W): 165
-

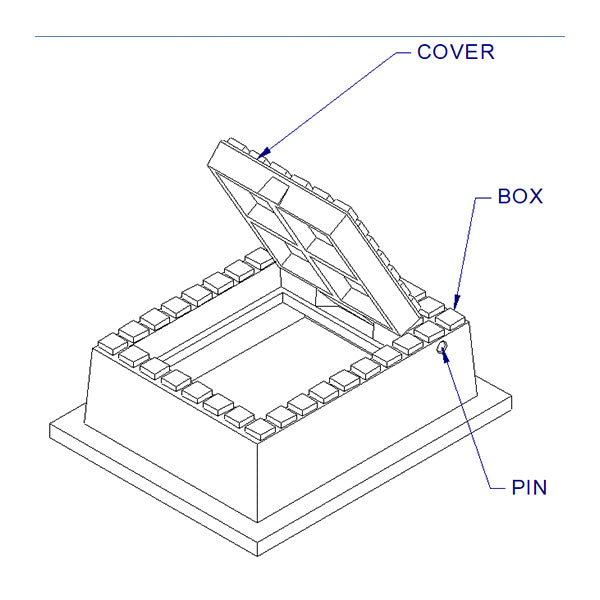

Ductile Inspection Box HDCI
Product Specifications
  • COVER (L): 256
  • COVER (W): 185
  • COVER THICKNESS: 40
  • FRAME (L): 375
  • FRAME (W): 305
  • FRAME DEPTH: 120
  • OPENING (L): 200
  • OPENING (W): 170
-

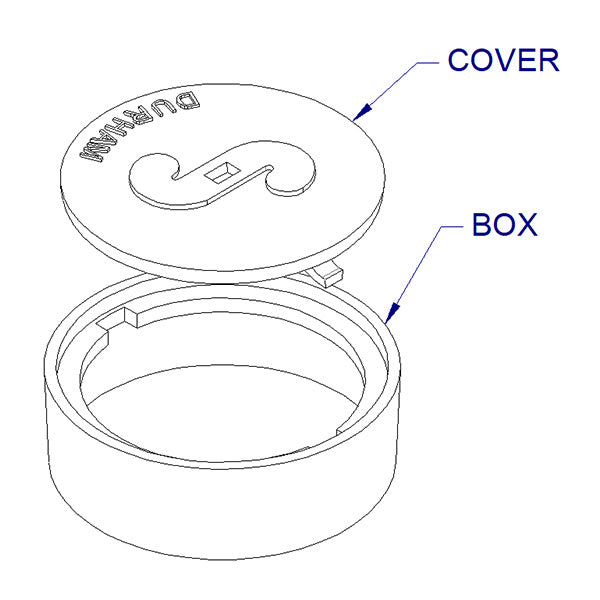

Ductile Inspection Box INSP
Product Specifications
  • COVER (L): 160
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 8
  • FRAME (L): 175
  • FRAME (W): CIRCULAR
  • FRAME DEPTH: 50
  • OPENING (L): 150
  • OPENING (W): CIRCULAR
-

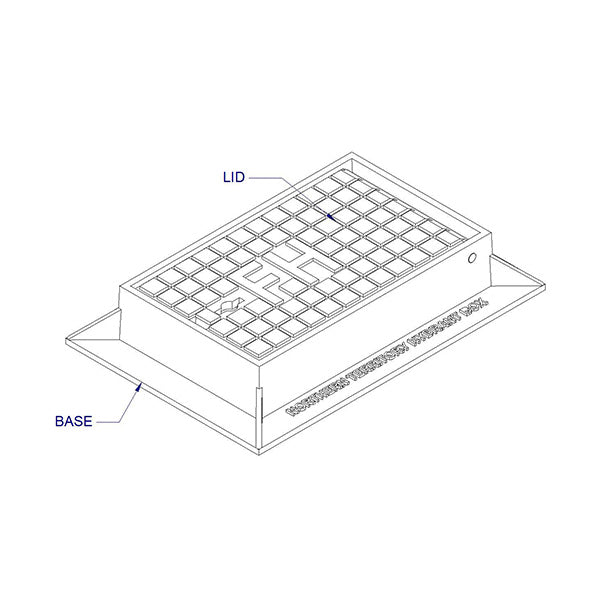

Ductile Inspection Box NT-HYD
Product Specifications
  • COVER (L): 435
  • COVER (W): 250
  • COVER THICKNESS: 40
  • FRAME (L): 575
  • FRAME (W): 390
  • FRAME DEPTH: 100
  • OPENING (L): 430
  • OPENING (W): 230
-

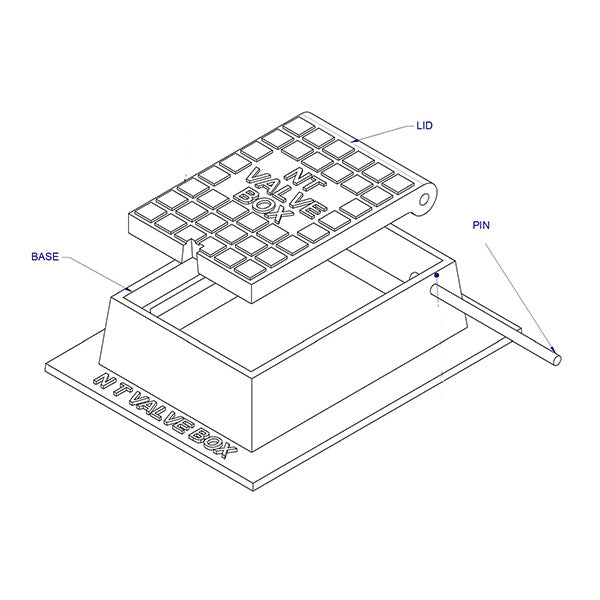

Ductile Inspection Box NT-VAL
Product Specifications
  • COVER (L): 290
  • COVER (W): 190
  • COVER THICKNESS: 30
  • FRAME (L): 420
  • FRAME (W): 325
  • FRAME DEPTH: 100
  • OPENING (L): 290
  • OPENING (W): 180
-

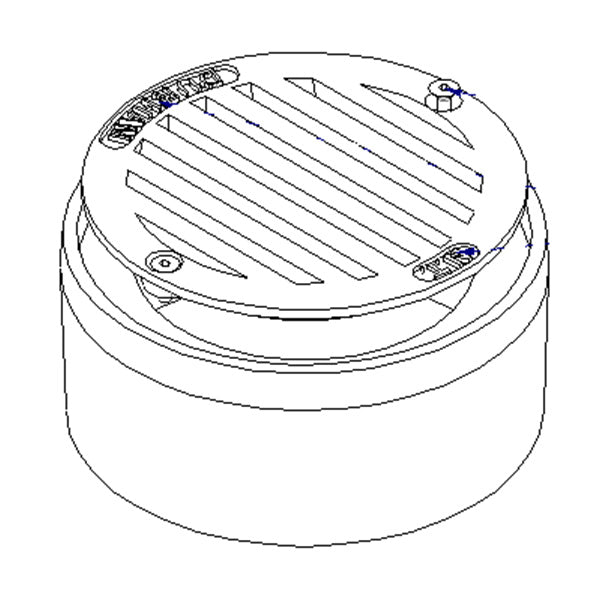

Ductile Inspection Box NT150R
Product Specifications
  • COVER (L): 150
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 10
  • FRAME (L): 175
  • FRAME (W): CIRCULAR
  • FRAME DEPTH: 20
  • OPENING (L): 125
  • OPENING (W): CIRCULAR
-
Ductile Inspection Box NT200R
Product Specifications
  • COVER (L): 200
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 13
  • FRAME (L): 265
  • FRAME (W): CIRCULAR
  • FRAME DEPTH: 95
  • OPENING (L): 150
  • OPENING (W): CIRCULAR
-

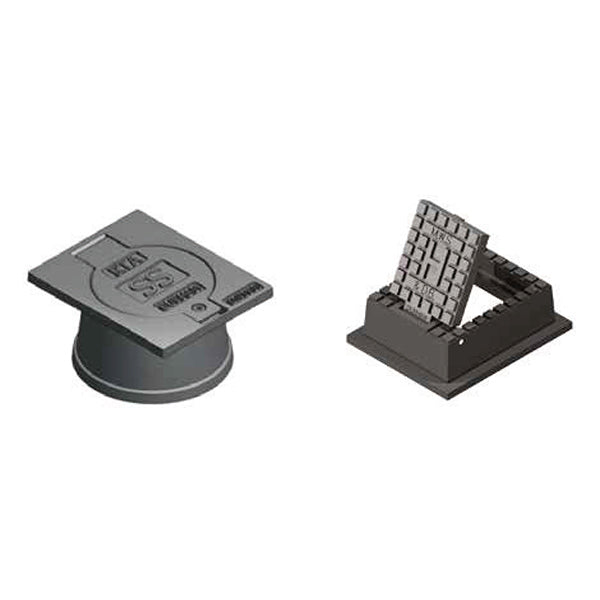

Ductile Inspection Box NTLINSP
Product Specifications
  • COVER (L): 275
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 25
  • FRAME (L): 340
  • FRAME (W): CIRCULAR
  • FRAME DEPTH: 105
  • OPENING (L): 230
  • OPENING (W): CIRCULAR
-
Ductile Inspection Box NTSINSP
Product Specifications
  • COVER (L): 200
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 13
  • FRAME (L): 265
  • FRAME (W): CIRCULAR
  • FRAME DEPTH: 95
  • OPENING (L): 150
  • OPENING (W): CIRCULAR
-

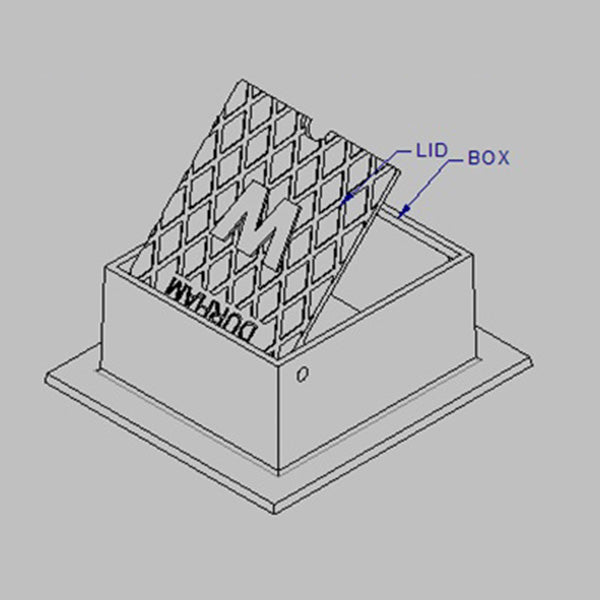

Ductile Inspection Box PATH4
Product Specifications
  • COVER (L): 105
  • COVER (W): 120
  • COVER THICKNESS: 5
  • FRAME (L): 152
  • FRAME (W): 172
  • FRAME DEPTH: 65
  • OPENING (L): 105
  • OPENING (W): 120
-

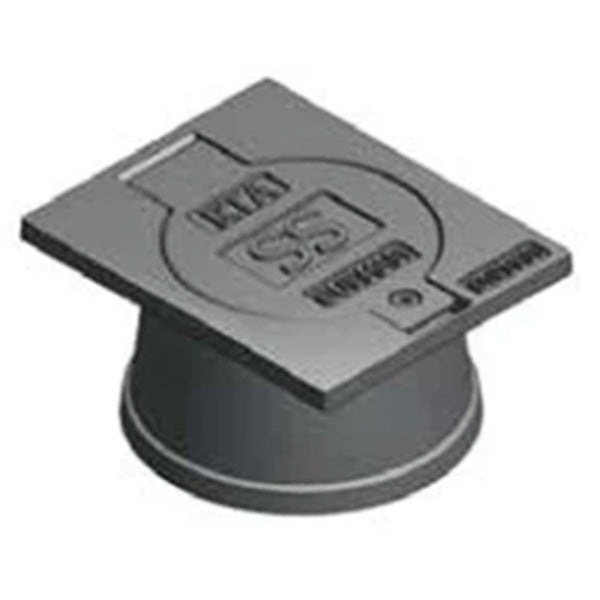

Ductile Inspection Box RTASS
Product Specifications
  • COVER (L): 105
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 12
  • FRAME (L): 136
  • FRAME (W): 127
  • FRAME DEPTH: 75
  • OPENING (L): 100
  • OPENING (W): CIRCULAR
-
Ductile Inspection Box RTASS-HD
Product Specifications
  • COVER (L): 105
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 13
  • FRAME (L): 155
  • FRAME (W): 125
  • FRAME DEPTH: 75
  • OPENING (L): 100
  • OPENING (W): CIRCULAR
-

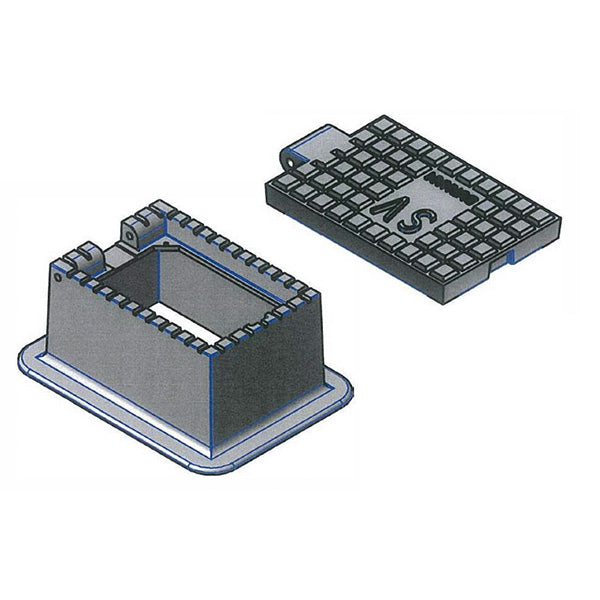

Ductile Inspection Box SV.AP.SW
Product Specifications
  • COVER (L): 315
  • COVER (W): 210
  • COVER THICKNESS: 40
  • FRAME (L): 490
  • FRAME (W): 365
  • FRAME DEPTH: 205
  • OPENING (L): 295
  • OPENING (W): 190
-

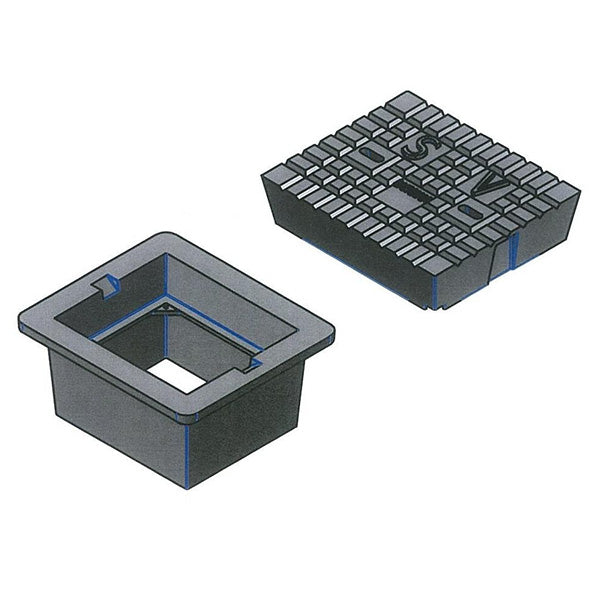

Ductile Inspection Box SV.CP.SW
Product Specifications
  • COVER (L): 317
  • COVER (W): 267
  • COVER THICKNESS: 75
  • FRAME (L): 425
  • FRAME (W): 375
  • FRAME DEPTH: 205
  • OPENING (L): 265
  • OPENING (W): 215
-

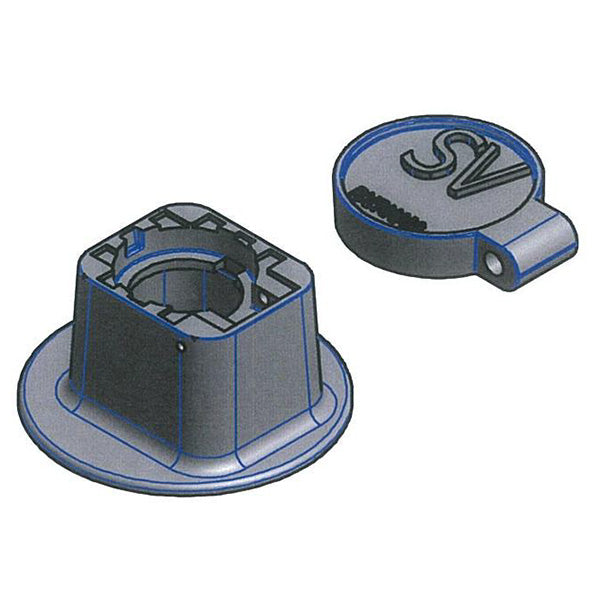

Ductile Inspection Box SV.NS.SW
Product Specifications
  • COVER (L): 124
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 40
  • FRAME (L): 295
  • FRAME (W): CIRCULAR
  • FRAME DEPTH: 145
  • OPENING (L): 100
  • OPENING (W): CIRCULAR
-

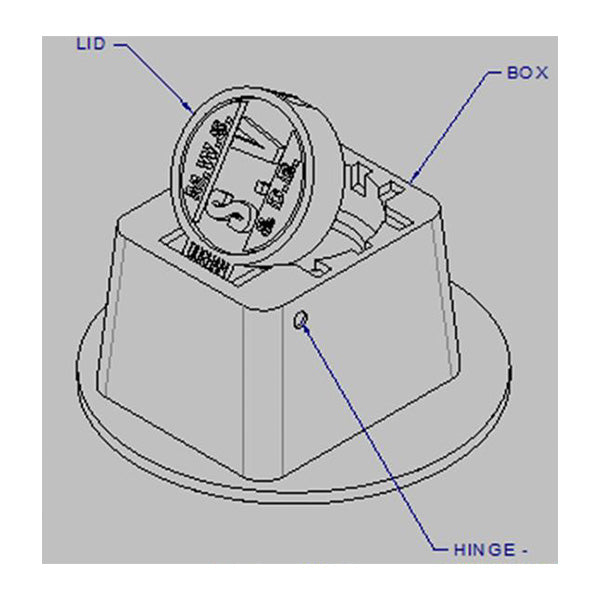

Ductile Inspection Box SVCI
Product Specifications
  • COVER (L): 123
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 40
  • FRAME (L): 185
  • FRAME (W): 155
  • FRAME DEPTH: 145
  • OPENING (L): 100
  • OPENING (W): CIRCULAR
-
Ductile Inspection Box WB96
Product Specifications
  • COVER (L): 240
  • COVER (W): 160
  • COVER THICKNESS: 10
  • FRAME (L): 290
  • FRAME (W): 210
  • FRAME DEPTH: 125
  • OPENING (L): 210
  • OPENING (W): 130
-

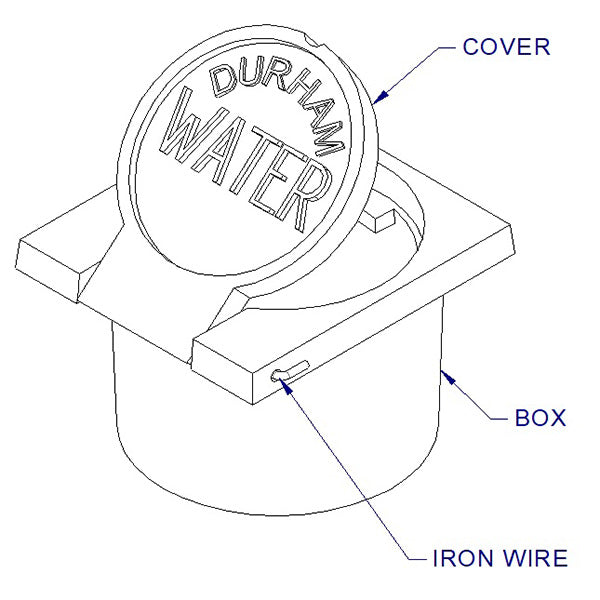

Ductile Inspection Box WBCI
Product Specifications
  • COVER (L): 105
  • COVER (W): CIRCULAR
  • COVER THICKNESS: 13
  • FRAME (L): 135
  • FRAME (W): 120
  • FRAME DEPTH: 90
  • OPENING (L): 100
  • OPENING (W): CIRCULAR
-
